Fixed Competitive Price China API Drilling Tools Stabilizer
owing to very good company, a variety of top of the range merchandise, competitive charges and efficient delivery, we take pleasure in a very good track record amongst our clients. We’ve been an energetic organization with wide market for Fixed Competitive Price China API Drilling Tools Stabilizer, We’re always looking forward to forming successful business relationships with new purchasers round the earth.
owing to very good company, a variety of top of the range merchandise, competitive charges and efficient delivery, we take pleasure in a very good track record amongst our clients. We’ve been an energetic organization with wide market for China Drill Collar, Drill Pipe, Replaceable Sleeve Stabilizer, Stabilizer, With a wide range, good quality, reasonable prices and stylish designs, our items are extensively used in this field and other industries. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

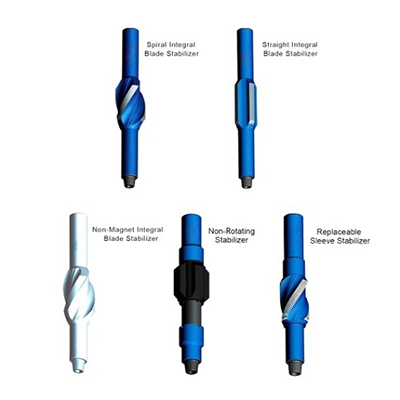

Replaceable sleeve stabilizer consists of mandrel and sleeve. The function is the same as spiral integral blade stabilizer. It can suit to different hole size and increase working life by changing the different size sleeve. The sleeve is threaded on the mandrel, so the sleeve can be fasten to the mandrel tightly and changed easily.
|
Working outside diameter OD mm（inch） |
Salvage diameter OD mm（inch） |
Upper end |
Lower end |
Hole ID mm（inch） |
Neck length mm（inch） |
Total length mm（inch） |
Remarks |
|
149.2 （5 7/8） |
120.7 (4-3/4) |
NC38 |
NC38 |
50.8(2) |
559(22) |
1372 (54) |
Drill string type |
|
31/2REG |
Near bit type |
||||||
|
152 （6） |
120.7 (4-3/4) |
NC38 |
NC38 |
50.8(2) |
559(22) |
1372 (54) |
Drill string type |
|
31/2REG |
Near bit type |
||||||
|
215.9（8-1/2） |
165 (6-1/2) |
NC50 |
NC50 |
71.4 (2-13/16) |
686（27） |
1676（66） |
Drill string type |
|
41/2REG |
Near bit type |
||||||
|
311.15（12-1/4） |
203(8) |
6-5/8 REG |
6-5/8 REG |
71.4 (2-13/16) |
610（24） |
1550（61） |
Drill string type |
|
Near bit type |
|||||||
|
444.5（17-1/2） |
229(9) |
7-5/8 REG |
7-5/8 REG |
76.5(3) |
686（27） |
1702（67） |
Drill string type |
|
Near bit type |
|||||||
|
660.4 (26) |
241.3 (9 1/2) |
7-5/8 REG |
7-5/8 REG |
76.5(3) |
660（26） |
1930（76） |
Drill string type |
|
Near bit type |
|||||||
|
711.2（28） |
241.3 (9 1/2) |
7-5/8 REG |
7-5/8 REG |
76.5(3) |
686（27） |
1981（78） |
Drill string type |
|
Near bit type |
