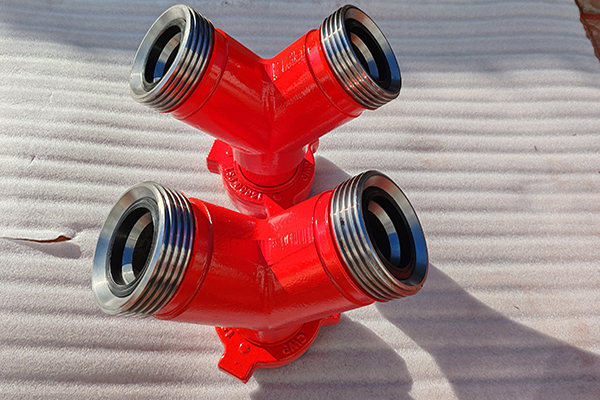

High pressure Y type Tee Joint for manifold
High Pressure Figure 1502 Integral Laterals are manufactured from hot forged alloy steel with special chemical properties,
and are carefully heat-treated to enhance tensile strength and low temperature impacts.
For incorporation into ground or truck mounted manifolds,the Kemper large bore 45°forged alloy steel Lateral is precision
machined with integral 2″,3″or 4″ Kemper Hammer Union ends in almost any Figure Number combination.
Specification
| Rated Working Pressure | 69.0MPa~138.0Mpa (10,000psi~20,000psi) | |
| Nominal Size | 1″, 2″, 3″, 4″ | |
| Temperature Rating | -29ºC~121ºC(PU), -46ºC~121ºC (LU) | -20ºF~250ºF (PU),-50ºF~250ºF(LU) |
| Service | Standard, Sour Gas | |
| Application | Fracturing, Cementing, Acidizing, Testing Lines | |
