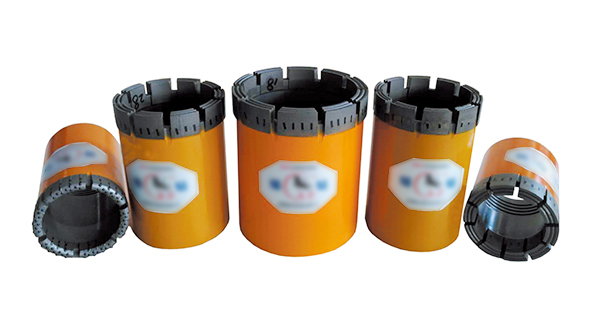

Casing shoes

casing shoes

Most drilling job during opening holes, it will choose casing shoes. We produce the most reliable casing shoes which make the hole-opening more smoothly. We offer quality proven standera casing shoes and heavy casing shoes. You can ensure that users can reach the bedrock with minimal equipment loss.The choice of the casing shoe is determined mainly by the soil peoperties and the thickness of the cover layer. A full range size are available.

套管鞋尺寸
Casing Shoe Sizes
Description Outside Diameter
外径
Inside Diameter
内径
规格 I nches
英寸
mm
毫米
Inches
英寸
mm
毫米
AW 2. 345 59. 56 1.9 48. 26
BW 2. 965 75. 31 2. 37 60. 2
NW 3. 615 91. 82 2. 992 76
HW 4. 625 117. 48 3. 925 99. 7
HWT 4. 625 117. 48 3. 925 99. 7
PW 5. 653 143. 58 4. 855 123. 3
T2-56 2. 205 56 1. 85 47
12-76 2. 992 76 2. 638 67
T2-86 3. 385 86 2. 823 71. 7
T2-101 3. 976 101 3. 031 77
T6-101 3. 976 101 3. 445 87. 5
T6-131 5. 157 131 4. 646 118



钻杆鞋尺寸
Rod Shoe Sizes
Description Outside Diameter
外径
Inside Diameter
内径
规格 Inches英寸 mm毫米 Inches英寸 mm毫未
B0 2. 345 59. 56 1. 78 45. 21
NQ 2. 965 75. 31 2. 37 60. 2
HQ 3. 615 91. 82 2. 992 76
PQ 4. 75 120. 66 3. 985 101.22

Post time: Feb-19-2021
