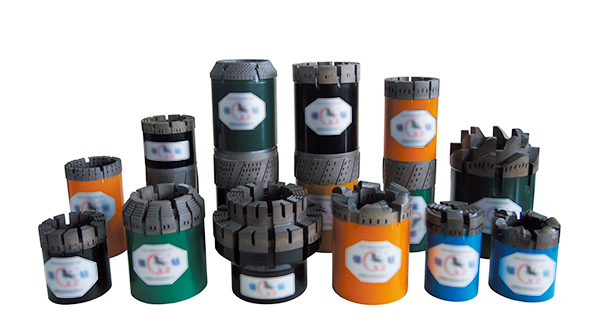

The main crown technical paramenters of impregnated diamond core bits include diamond grade,size,concentraion and quality,matrix hardness and crown shapes.The users can make rational selections accroding to the formations to be drilled.
To aviod excessive bit wear,tungsten carbide inserts are used on both sides of the waterways,and gage stones are a bit larger.
Sizes of Core Bits and Reaming Shells:
Description | 钻头 Core bit |
钻头 Core bit |
金刚石扩孔器 Reaming shell |
|||
规格型号 | 外径 Outside Diameter |
内径 Inside Diameter |
外径 Outside Diameter |
|||
Model | 英寸 Inches |
毫米 mm |
英寸 Inches |
毫米 mm |
英寸 Inches |
毫米 mm |
BTW | 2.345 | 59.56 | 1.667 | 42.1 | 2.36 | 59.95 |
NTW | 2.965 | 75.31 | 2.218 | 56.1 | 2.98 | 75.7 |
HTW | 3.762 | 95.57 | 2.809 | 71.1 | 3.783 | 96.09 |
AQ | 1.875 | 47.63 | 1.062 | 26.97 | 1.89 | 48.01 |
BQ | 2.345 | 59.56 | 1.433 | 36.4 | 2.36 | 59.95 |
BQ3 | 2.345 | 59.56 | 1.32 | 33.53 | 2.36 | 59.95 |
NQ | 2.965 | 75.31 | 1.875 | 47.63 | 2.98 | 75.7 |
NQ3 | 2.965 | 75.31 | 1.775 | 45.08 | 2.98 | 75.7 |
HQ | 3.762 | 95.57 | 2.5 | 63.5 | 3.783 | 96.09 |
HQ3 | 3.762 | 95.57 | 2.406 | 61.11 | 3.783 | 96.09 |
PQ | 4.805 | 122.05 | 3.345 | 84.96 | 4.828 | 122.65 |
PQ3 | 4.805 | 122.05 | 3.27 | 83.06 | 4.828 | 122.65 |
T2-56 | 2.205 | 56 | 1.642 | 41.7 | 2.224 | 56.5 |
T2-76 | 2.992 | 76 | 2.429 | 61.7 | 3.019 | 76.5 |
T2-86 | 3.385 | 86 | 2.823 | 71.7 | 3.406 | 86.5 |
T2-101 | 3.976 | 101 | 3.295 | 83.7 | 3.996 | 101.5 |
T6-101 | 3.976 | 101 | 3.11 | 79 | 3.996 | 101.5 |
T6-131 | 5.157 | 131 | 4.252 | 108 | 5.157 | 131.5 |
