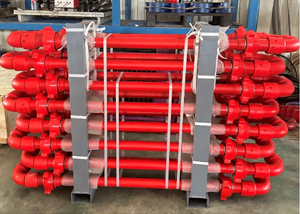

Drilling Manifold
Application
The drilling manifold an important equipment in Oil, Gas drilling circutation system.It pumps high-pressure mud into the well, clean well bottom, carries debris, and complete the drilling fluid circulation.

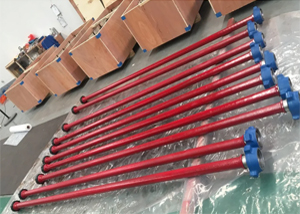

The drilling fluid manifold is composed of hard seal mud gate valves, high pressure spherical unions,high pressure gauges,short joints ,etc.The ground manifold has features of compact structure and lower hydraulic resistance. The Rig floor manifold adopt reducing crosses,which is convenient of single standpipe/double standpipe.
Main Technical Parameters
Type |
ZG102-35 |
ZG102-53 |
ZG100-70 |
Working Pressure (MPa/psi) |
35/5000 |
52/7500 |
70/10000 |
Test Pressure (MPa/psi) |
53/7500 |
80/11250 |
105/15000 |
Normal l.D(mm) |
Φ102 |
Φ100 |
|
Working Temperature (℃) |
P-U:-29℃-+121℃; L-U:-46℃-+121℃ |
||
Connection |
swivel joint(Union/4’’-1003、4’’-1002、2’’-1502) |
||
Working Media |
mud,crude,oil,clean water,fracturing fluid,etc |
