Integral Blade Stabilizer

Short Description:

Our company provides integral straight blade stabilizer, integral spiral blade stabilizer, replaceable sleeve stabilizer, non-rotating stabilizer (rubber sleeve stabilizer), hard facing stabilizer, 3-Piece sleeve replaceable stabilizer, float valve stabilizer, spherical stabilizer, variable diameter stabilizer, etc. All above products comply with API Spec 7.




Product Detail

Product Tags

Our company provides integral straight blade stabilizer, integral spiral blade stabilizer, replaceable sleeve stabilizer, non-rotating stabilizer (rubber sleeve stabilizer), hard facing stabilizer, 3-Piece sleeve replaceable stabilizer, float valve stabilizer, spherical stabilizer, variable diameter stabilizer, etc. All above products comply with API Spec 7.

      Integral 3-spiral blade stabilizer, integral 4-spiral blade stabilizer (string type, near bit type). The working hardfacing surface (also called as wall contact) materials available separately are carbide insert, insert diamond compound, low temperature brazing tungsten carbide slug, surface bead welding abrasive welding rod,etc.

Technical Specifications and Parameters:

(in)

(mm)

End OD

(mm)

ID

(mm)

Kit Length

(mm)

Connection

String type

Near bit type

Top

Down

Top

Down

6

152.4

121

51

1200

NC38

3 1/2 REG

6 1/4

158.7

6 1/2

165.1

7 1/2

190.5

159

57

1600

NC46

4 1/2 REG

7 7/8

200

8 3/8

212.7

159 165

71

1600 1800

NC46 NC50

8 1/2

215.2

159

165

178

8 3/4

222.2

9 1/2

241.3

178 197

1600

NC50

NC50

NC50

9 5/8

244.5

1800

6 5/8 REG

9 7/8

250.8

12 1/4

311.2

203 209

76

1800

NC56

6 5/8 REG

NC56

6 5/8 REG

NC56

6 5/8 REG

6 5/8 REG

16

406

229 241.3

2000 2200

NC61

7 5/8 REG

NC61

7 5/8 REG

NC61

7 5/8 REG

NC61

7 5/8 REG

17 1/2

444.5

24

609.6

26

660.4

28

711.2

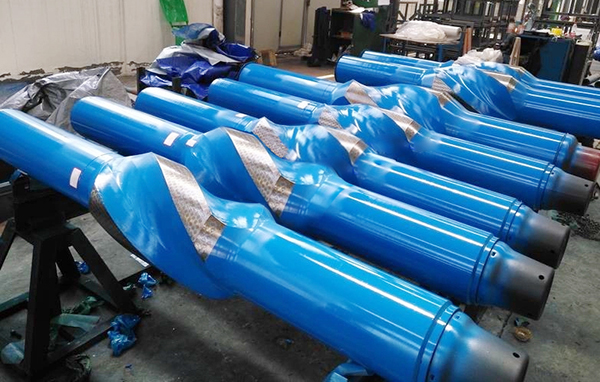

Integral Spiral Stabilizer-1
